Description

Given the root of a binary tree, return the leftmost value in the last row of the tree.

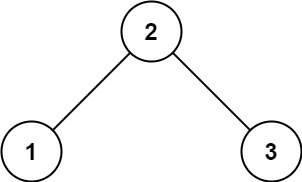

Example 1:

Input: root = [2,1,3]
Output: 1

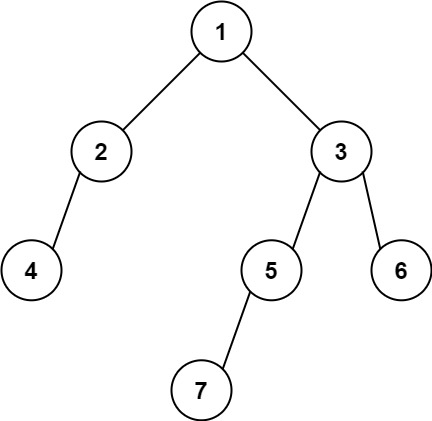

Example 2:

Input: root = [1,2,3,4,null,5,6,null,null,7]
Output: 7

Constraints:

  • The number of nodes in the tree is in the range [1, 10^4].

  • -23^1 <= Node.val <= 23^1 - 1

Solution

Approach #0: BFS

/**
 * Definition for a binary tree node.
 * type TreeNode struct {
 *     Val int
 *     Left *TreeNode
 *     Right *TreeNode
 * }
 */
func findBottomLeftValue(root *TreeNode) (ans int) {
    queue := []*TreeNode{root}
    for len(queue) > 0 {
        size := len(queue)
        for i := 0; i < size; i++ {
            node := queue[i]
            if i == 0 {
                ans = node.Val
            }
            if node.Left != nil {
                queue = append(queue, node.Left)
            }
            if node.Right != nil {
                queue = append(queue, node.Right)
            }
        }
        queue = queue[size:]
    }
    return
}

Approach #1: BFS

/**
 * Definition for a binary tree node.
 * type TreeNode struct {
 *     Val int
 *     Left *TreeNode
 *     Right *TreeNode
 * }
 */
func findBottomLeftValue(root *TreeNode) (ans int) {
    queue := []*TreeNode{root}
    for len(queue) > 0 {
        node := queue[0]
        queue = queue[1:]
        if node.Right != nil {
            queue = append(queue, node.Right)
        }
        if node.Left != nil {
            queue = append(queue, node.Left)
        }
        ans = node.Val
    }
    return
}

Approach #2: DFS

/**
 * Definition for a binary tree node.
 * type TreeNode struct {
 *     Val int
 *     Left *TreeNode
 *     Right *TreeNode
 * }
 */
func findBottomLeftValue(root *TreeNode) (ans int) {
    var cur int
    var dfs func(*TreeNode, int)
    dfs = func(node *TreeNode, depth int) {
        if node == nil {
            return
        }
        depth++
        dfs(node.Left, depth)
        dfs(node.Right, depth)
        if depth > cur {
            cur = depth
            ans = node.Val
        }
    }
    dfs(root, 0)
    return
}
